Submersible mixer

For biogas plants. Flexible use.

Agitators for biogas should be able to stir liquids with a high dry matter content effectively. Our submersible motor agitator in the biogas plant is characterised by optimum flexible adjustment options and a high agitating performance.

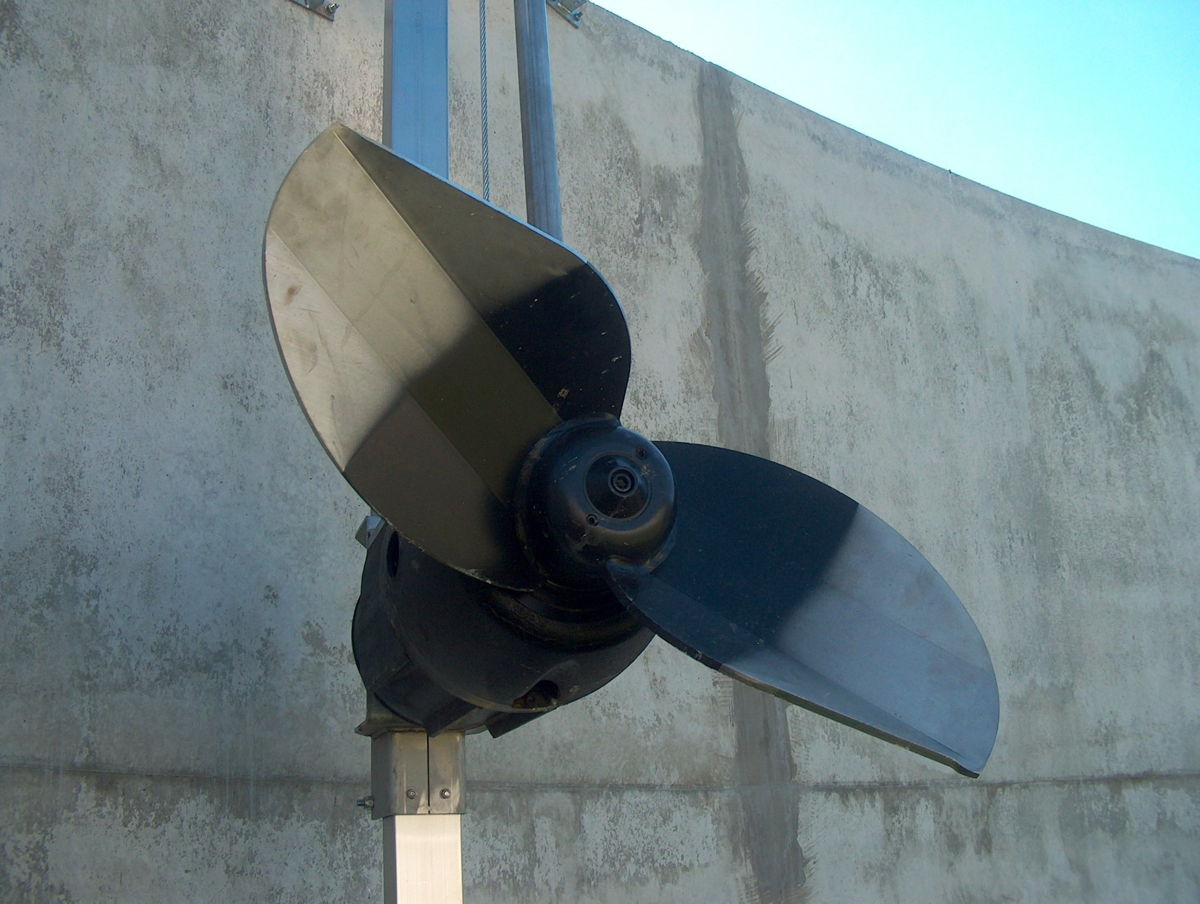

Tauchmotor-Rührwerk im inneren eines Biogas-Behälters

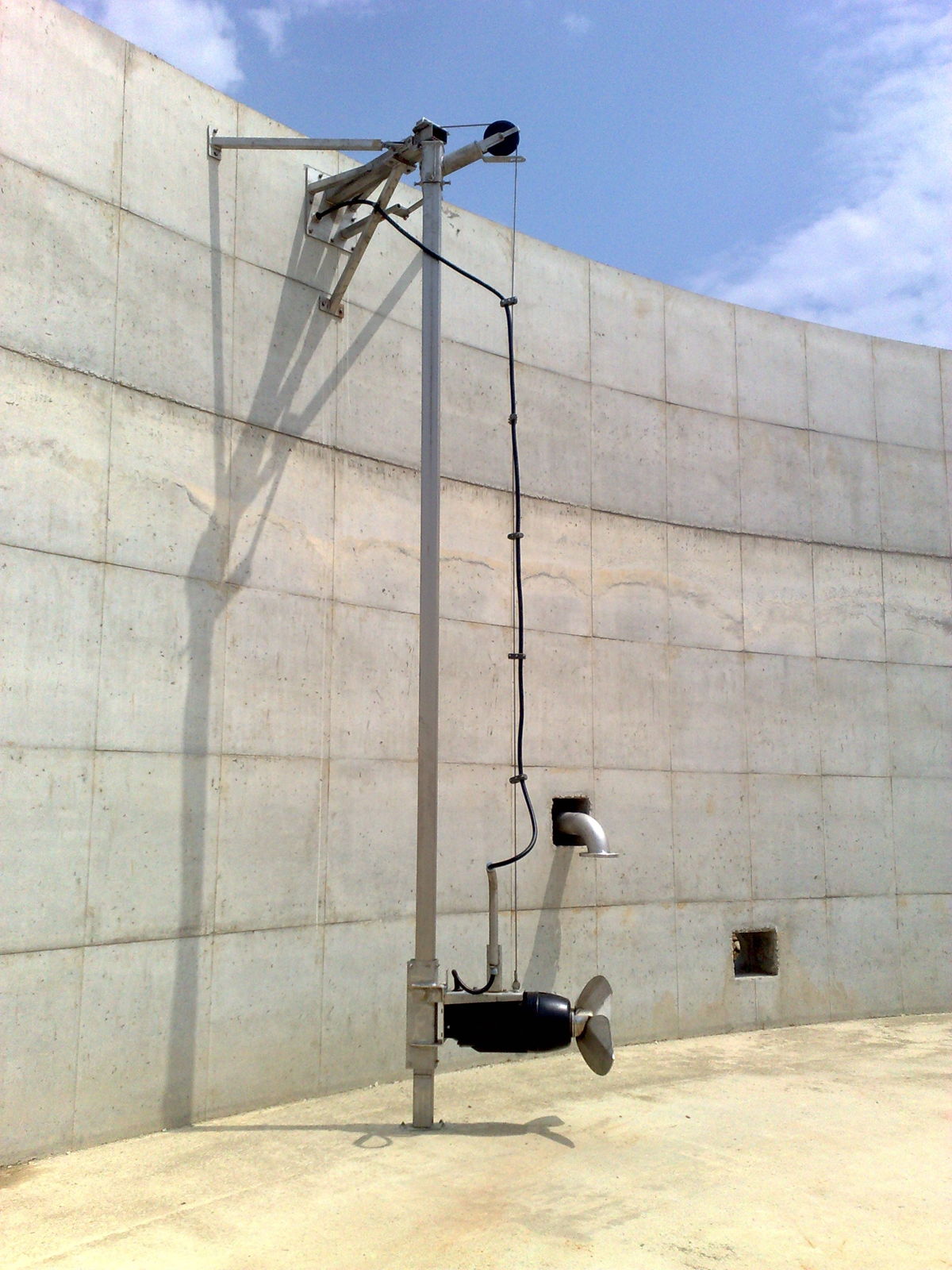

Höhenverstellbares Tauchrührwerk in Biogasanlage

Super flexible

Stirring & homogenising biomass - TMR submersible mixer

Flexibly adjustable in height: The Paulmichl submersible mixer for biogas plants is preferably used in secondary fermenters and final storage tanks or as a ring and slalom channel mixer . It can be installed with the standard lowering guide for open final storage tanks. For use in closed tanks, it is installed with a gas-tight wall or ceiling feed-through.

Advantages of the submersible motorised agitator

For fermenters, secondary fermenters and final storage tanks
Flexible vertical and horizontal adjustment options
Reliable, long-lasting use due to flow-optimised design
thermal monitoring of the agitator through built-in thermal sensors
Increased thrust due to installation with increased wall clearance

Technical data

High-quality sealing with SIC/SIC mechanical seal
Motor sizes from 0.75 - 22 kW
Protection class IP68
Agitator blade diameter: 181 - 1,000 mm
Design of the agitator blade with self-cleaning profiling
Reliable cable routing thanks to cable conduit
Robust plastic cable holder
Special motor cable with reinforced cable sheathing for double protection against damage
Drive unit with robust planetary gearbox

Aufrühren & Homogenisieren von Biomasse - Tauchmotorrührwerk TMR

In der Höhe flexibel verstellbar: Das Paulmichl Tauchmotorrührwerk für Biogasanlagen wird bevorzugt in Nachgärbehältern und Endlagern oder als Ring- und Slalomkanal-Rührwerk eingesetzt. Der Einbau kann mit der Standard-Absenkführung für offene Endlager erfolgen. Für den Einsatz in geschlossenen Behältern erfolgt der Einbau mit einer gasdichten Wand – oder Deckendurchführung.
